Series of Star 5
Name of product
Star 5 Plus Domino/Star 5 Plus V12
Information of product

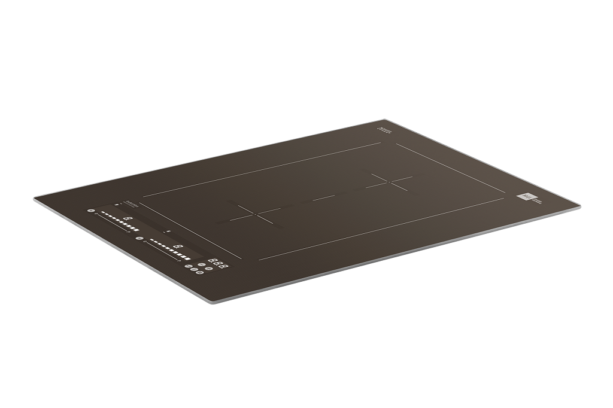

Star 5 Plus Domino
Compact induction stove as an addition to fitted kitchens and ideal for kitchens with limited space. Bridge function for serial connection of two or more cooking zones to one large cooking zone with common controls. Direct, intuitive and simply control of cooking zones by slide-touch control. Thanks to advanced induction technology, the surface remains almost cold and is easy to clean after cooking. SCHOTT CERAN® CLEARTRANS glass ceramic top in refined metallic look for custom-designed and trendy kitchens.

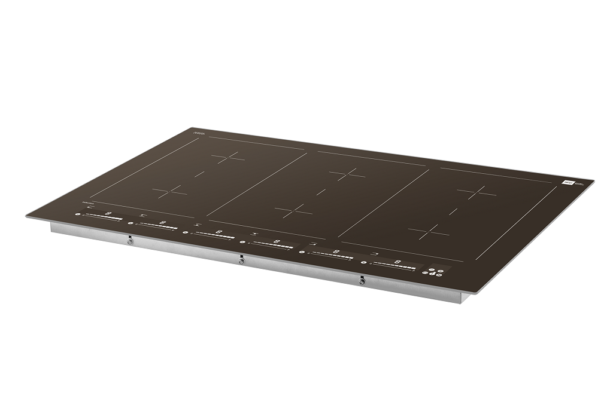

Star 5 Plus V12
Enjoy the versatility of six cooking zones – cook the way the professionals cook. The integrated bridge function transforms the induction cooktop into a professional cooking solution with three temperature zones that allows pots and pans to be placed anywhere on the surface. Direct, intuitive and simply control of cooking zones by slide-touch control. Thanks to advanced induction technology, the surface remains almost cold and is easy to clean after cooking. Premium quality SCHOTT CERAN® CLEARTRANS glass ceramic top in refined metallic look for custom-designed and trendy kitchens.
Functions of product
3 warm settings
Boost function
Bridge function
Residual heat indicator
Timer
Auto-stop
Buzzer
Error display
Auto Power (cooking zone and heat output adapt automatically to pot/pan size)
Key-lock
Digital display panel
Stop & Go function
parameters of product
Star 5 Plus Domino
Colour: transparent grey、 transparent white
Voltage: 220 V–240 V
Frequency: 50 Hz/60 Hz
Current: 16A
Size of cooking zone:
single cooking zone: 240 ×190 mm
bridging cooking zone: 240 × 380 mm
Power of cooking zone:
both front and back cooking zone: 2,100 W
bridging cooking zone: 3,700 W
boost function in both cooking zones: 3,700 W
Minimal induction area:
single cooking zone: Ø 90 mm
bridging cooking zone: Ø 220 mm
Surface type: SCHOTT CERAN® CLEARTRANS
Surface temperature: none
Input power regulation: 0-9 power level, boost function
Method of control: sliding touch control
Method of use: build-in
size of panel: 520 × 380 × 4 mm
Size of product: 520 × 380 × 52 mm
Size of cut-out: 495 (±3) × 280 (±3) mm
Weight: 6kg
Star 5 Plus V12
Colour: transparent grey
Voltage: 220 V–240 V
Frequency: 50 Hz/60 Hz
Current: 3x16A
Size of cooking zone:
single cooking zone: 230 × 190 mm
bridging cooking zone: 230 × 380 mm
Power of cooking zone:
both front and back cooking zone: 2,100 W
bridging cooking zone: 3,700 W
boost function in both cooking zone: 3,700 W
Minimal induction area:
single cooking zone: Ø 90 mm
bridging cooking zone: Ø 220 mm
Surface type: SCHOTT CERAN® CLEARTRANS
Surface temperature: none
Input power regulation: 0-9 power level, boost function
Method of control: electronic sliding touch energy control
Method of use: built-in
Size of panel: 520 × 800 × 4 mm
Size of product: 520 × 800 × 52 mm
Size of cut-out: 495 (±3) × 750 (±3) mm
Weight: 15.1 kg
